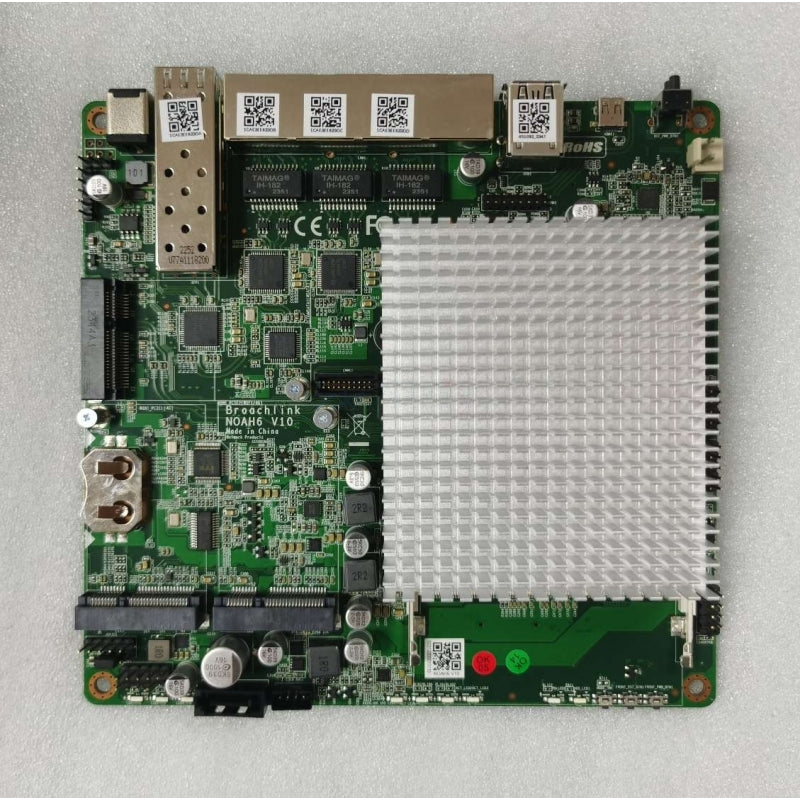

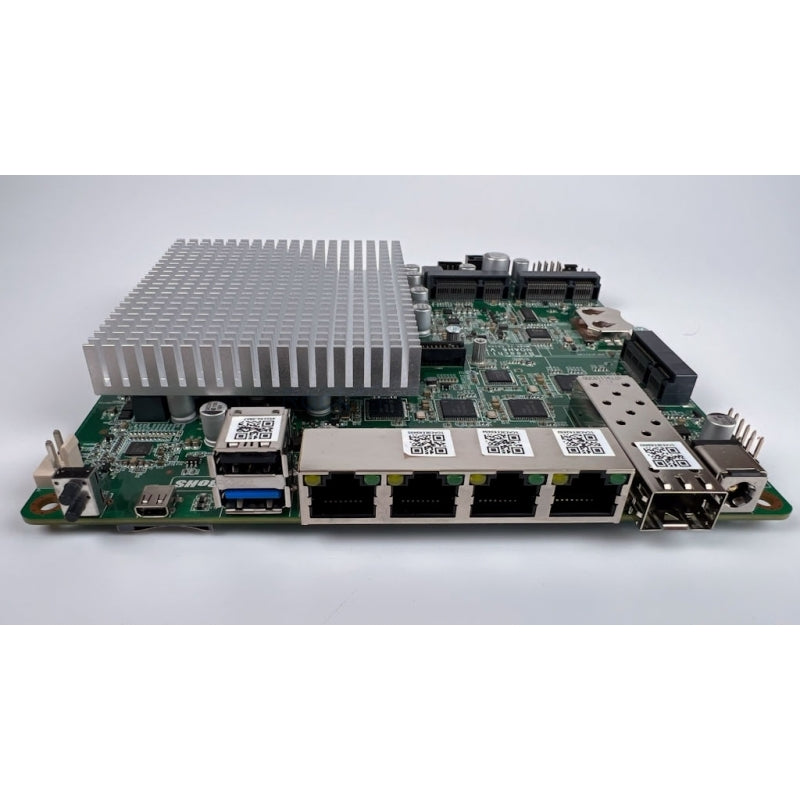

Braochlink NOAH6 Firewall Router Motherboard Intel E3845, 4 cores 1.91 GHz
Braochlink NOAH6 Firewall Router Motherboard Intel E3845, 4 cores 1.91 GHz
Regular price
$212.50 USD
Regular price
Sale price
$212.50 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Noah 6 motherboard - Intel E3845 AES-NI, 4 cores 1.91 GHz (memory up to 8 GB),
- 3 x Gigabit LAN Intel I210AT,
- 1 x Gigabit SFP Intel I210AS,
- 2 x miniPCIe connectors (1 x 4G LTE/Wifi, 1 x 4G LTE)
- 1 x mSATA connector
- 2 x Push-Push SIM Slot
- 20 Channel GPIOs
- micro HDMI
- USB 2.0/3.0
BL-NOAH6
New product
Noah 6 motherboard
Intel E3845 AES-NI, 4 cores 1.91 GHz (memory upto 8 GB), 3LAN Gigabit, 2 miniPCIe, USB 3.0
Noah 6 is reliable and powerful fanless hardware for 24/7 devices and more
- Industrial environment (router, hardware controller, control panel interface, ...)
- Telecom (router, IPBX, VoIP gateway, LTE, WiFi controller, etc.)
- Network (firewall router, aggregator, VPN server, NAS, video surveillance, …)
- Security (VPN server, analyzer, packet inspector, …)
- IoT (gateway, concentrator, on-site controller, on-site analyzer, …)
- Prototyping (proof of concept, Geek hobbyst, …)
- And your equipment, contact us...
Noah6 the replacement alternative for the APU6 board from PC Engines.
The Noah6 was designed with the goal of facilitating the replacement of the PC Engines APU6 card. All APU6 users are invited to read .
Controlling LEDs and the push button under Linux
Rack Matrix Technology has developed an open source driver for Linux to manage the 3 LEDs and the push button on the front panel. This driver opens the possibility for all application developers to display different information about their application through the switching on or off of the LEDs as well as an interaction with the push button. We have written an on our website.
Successfully tested with
Specification
| Processor System | CPU: Intel Atom E3845 |
| Core: 4 | |
| Frequency: 1.91GHz | |
| L2 Cache: 2MB | |
| BIOS: AMI 64 Mbits | |
| AES: AES-NI | |
| Memory | Technology: DDR3L 1333MHz |
| Max. Capacity: 8 GB (Should be installed in factory) | |
| Socket: 1 x 204 pin SODIMM | |
| Display | micro HDMI |
| Ethernet | 3 x RJ45 Gigabit Intel I210AT |
| 1 x SFP Gigabit Intel I210AS | |
| WatchDog Timer | Output: System reset |
| Internal Watchdog timer: (programmable 1-255s,1-255min, disable) | |
| Storage | mSATA: 1 x full size mSATA |
| SATA: 1 x SATAII (Max. Data Transfer Rate up to 3.0 Gb/s) | |
| Internal I/O | Up to 3 Serial: 1 x RS-232 ,2xTTL (Transfer rate up to 1 Mbit/s) |
| Ethernet: Up to 3 GbE | |
| Reset Button: 2 | |
| Power Button: 2 (For system wake) | |
| USB: 3 x USB2.0 + 1 x USB3.0 | |
| GPIO: 20-bit GPIOs | |
| Expansion |
MINI_PCIE1 slot has PCIe, SIM and USB signal for (4G/LTE). |
| mSATA: 1 | |
| Power | Power input: 12V ±10% only |
| Power Consumption (Typical,Minimum system) Noah with E3845: 0.5A @ 12V (5.28W) | |
| Power Consumption (Max, test in pfSense) Noah with E3845: 1A @ 12V (12W) | |
| Environment | Operating 0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing) |
| Non-Operating -40° C ~ 85° C and 60° C @ 95% RH non-condensing | |
| Physical Characteristics | Dimensions (L x W): 160 x 152 mm (6.3" x 5.99") |
| Weight: 0.45 kg (0.99 lb) (with heatsink) | |
| Total Height: (with cooler + PCB + Bottom) 33mm |
