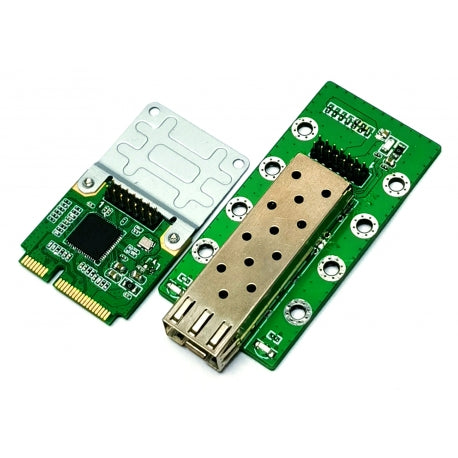

Intel i210-AS 1-port Gigabit SFP mini PCIe card

This card is compatible with Broachlink Noah embedded motherboards, PC Engines APU2, APU3, APUs and all motherboards that have a mini PCIe connector with PCIe signals. Also compatible with pfSense and OPNsense.

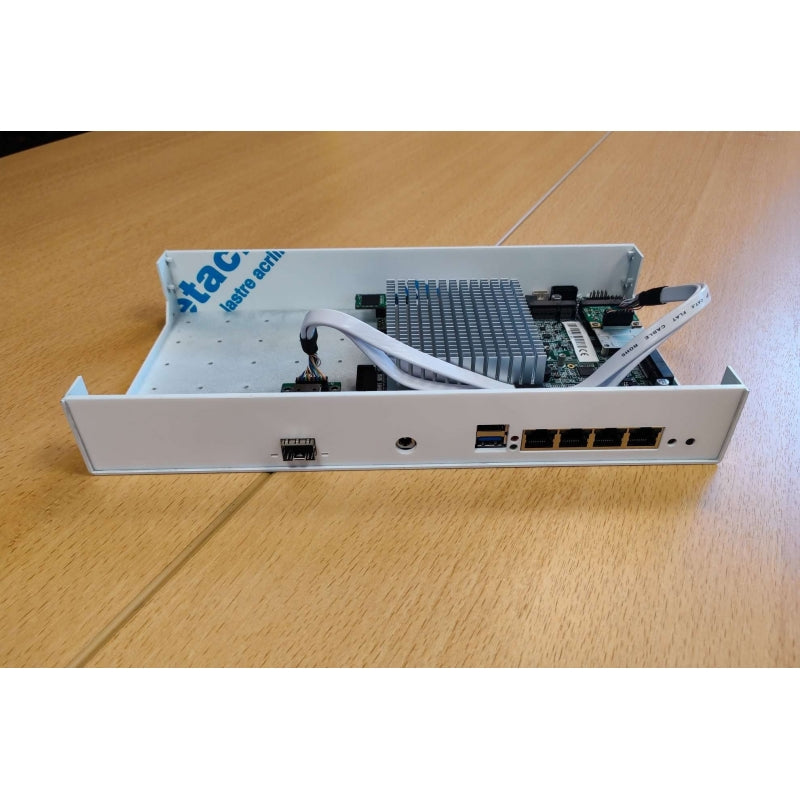

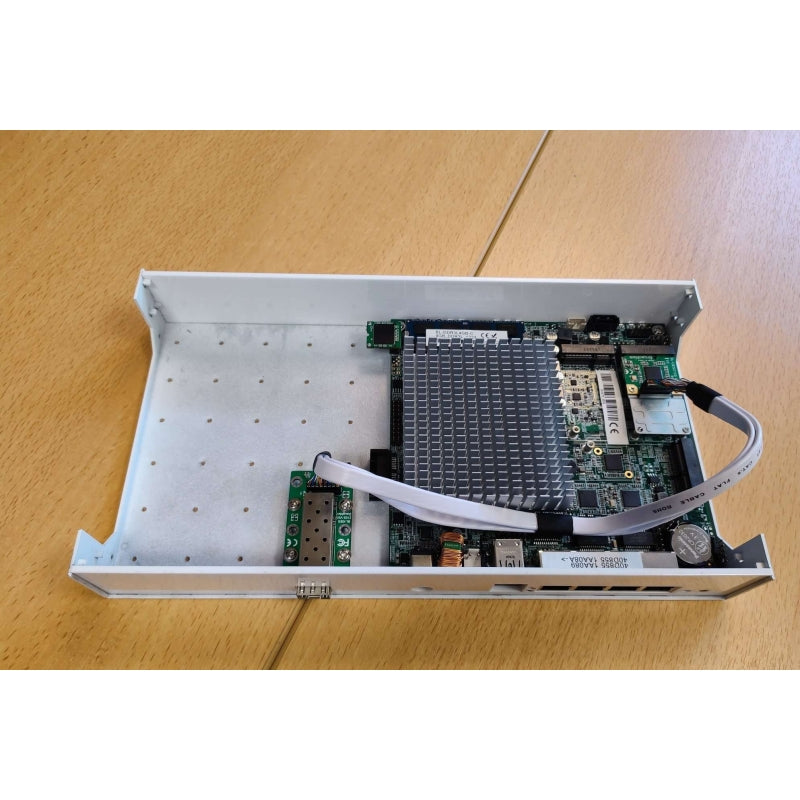

Designed for an Easy Integration into Rack Matrix Technology enclosures such as Rack Matrix S2. So there are fronts panel for Noah2/3/4/5/6 series and APU2/3/4 with the cutout for the BL-GES210S board.

We have written an article on our blog for the

features

• Compliant with PCI Express MINI card Electromechanical Specification 1.2
• Compliant with PCI Express base specification revision 1.1
• Compliant with PCI bus power management interface specification revision 1.2
• SFP slot supporting the following transceiver: Mini GBiC
• 1000SX Multi mode, 1000LX Single mode, 1000BX Single mode WDM
• Chipset: WGI210AS
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports IPv4, IPv6 protocols
• Supports Jumbo Frames up to 9.5KB
• Supports TCP segmentation offload up to 256 KB
• Supports Checksum offloading
• Drivers for Win7/Win8/Win10/Vista/Server 2008/Server 2012/Linux/ DOS
